Stairconnection Stair-Landing

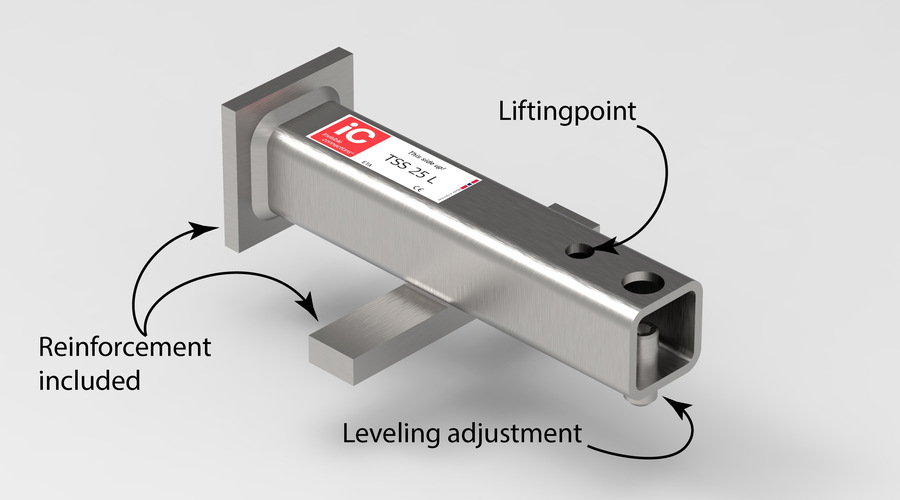

TSS 25 L, stair-landing connection
Connection between stair/landing
TSS 25 L is a cost-saving "All in one" connection without the need for a corbel solution.
- TSS 25 L can be used as a lifting point. Quick and easy installation on the construction site (see picture under).
- No lifting anchor or flicking of stairs afterwards.
- Fast and easy leveling, flight to landing.
- Lifting device for lifting and handling the element in production, saves several lifting anchors.
- Avoids corbel solution.
- Efficient assembly on construction site, avoids shimming. Estimated time saving is 10-15% on construction site.
- Fully reinforced.
For more information about TSS 25 L see: Memo 65 A
- Capacity
- 25 kN
- Minimum slab thickness
- 200 mm
- Weight, black steel
- 2.8 kg
- Weight, galvanised
- 2.85 kg
TSS 25 L måltegning
- TSSRVK v1.6E — Calculationstool
- Memo nr 31 — Guidance, stair connections
- Memo nr 41 — Additional products, stair connections
- Memo nr 45 — Fire protection, stair connections
- Memo nr 47 — Impact sound transmission, stair connections
- Memo nr 54 — Technical specifications, stair connections
- Memo nr 55 — Anchoring reinforcement, stair connections
- Memo nr 64 — Anchoring reinforcement, units in pair, cc 250, stair connections
- Memo nr 65 — Anchoring reinforcement, stair connections - TSS 20 FA
- Memo nr 65 A — Anhoring reinforcement, stair connections - TSS 25 L
- Calcyl, Earthquake.
- Des Bull — Des Bull Report.
- Analyses of stairwells performace and damage during Wenchuan earthquake.
- Memo no 70 — Memo 70 i C SOLUTION FOR EARTHQUAKE AND STAIRS 2
- Memo no 71 — iC solution for earthquake and stairs spreadsheet.
- Memo no 72 — iC solution for earthquake and stairs additional reinforcement.
