RVK 60 P, telescopic connection
RVK 60 P stair connection consists of outer and inner tube.

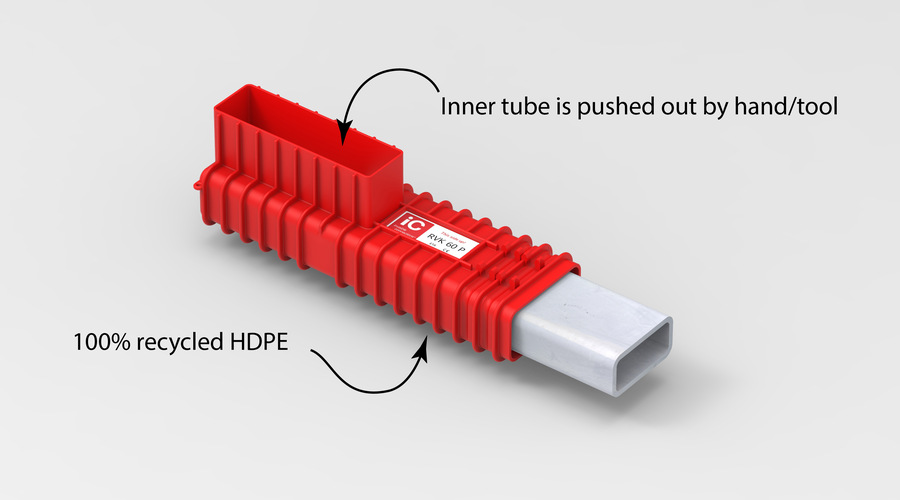

The outer tube is made from 100% recycled PE and made to fit on the outside of the inner tube.

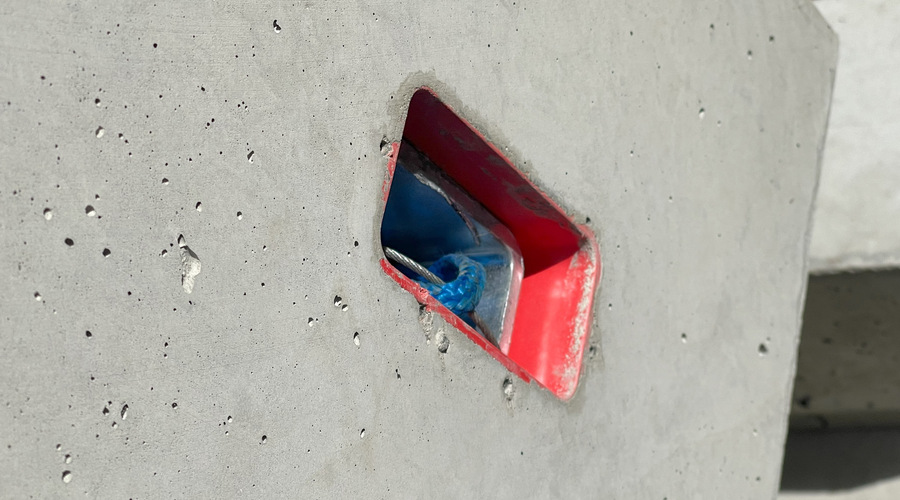

The inner tube will slide inside the outer tube and be pushed out and in to the recess in the wall. The inner tube is pushed out/in mechanically. User-friendly "clips" to place reinforcing bars in the correct position.
Invisible Connections RVK 60 P is supplied in black steel or galvanized.
Capacity 57 kN, minimum landing thickness 170 mm at full capacity, 120 mm with reduced capacity.
For soundreduction combine with IC Box 100 SRU
| Recommended maximum ULS load Fv,Ed [kN] | 57 kN |
| Minimum landing thickness | 170 mm at full capacity, 120 mm with reduced capacity |
| Weight black steel/galvanized version | 2,80 kg/2,85 kg |
- Capacity
- 57 kN
- Minimum slab thickness at full capacity
- 170 mm
- Minimum slab thickness at reduced capacity
- 120 mm
- Weight, black steel
- 2.8 kg
- Weight, galvanised
- 2.85 kg
Engineering / design
| Memo no | Name/download | Format | |
|---|---|---|---|
| TSSRVK v1.6E | Calculationstool |  | |
| Memo no 31 | Guidance, stair connections |  | |
| Memo no 41 | Additional products, stair connections | | |
| Memo no 45 | Fire protection, stair connections | | |
| Memo no 47 | Impact sound transmission, stair connections | | |
| Memo no 54 | Technical specifications, stair connections | | |
| Memo no 55 | Anchoring reinforcement, stair connections | | |
| Memo no 64 | Anchoring reinforcement, units in pair, cc 250, stair connections | | |
| Memo no 65 | Anchoring reinforcement, stair connections - TSS 20 FA | | |
| Memo no 65 A | Anhoring reinforcement, stair connections - TSS 25 L | |
Production / assembly
| Memo no | Name/download | Format | |
|---|---|---|---|
| Memo TSS/RVK | Memo TSS RVK RECOMMENDED PRODUCTION | | |
| Memo no 20 | RVK, Production procedure | | |
| Memo no 32 | TSS, Production procedure. | | |
| Memo no 66 | TSS 20 FA, assembling guidance. | |
Seismic zones TSS - RVK
| Memo no | Name/download | Format | |
|---|---|---|---|
| Calcyl, Earthquake. | Excel | | |
| Des Bull | Des Bull Report. | | |
| Analyses of stairwells performace and damage during Wenchuan earthquake. | | ||
| Memo no 70 | iC solution for earthquake and stairs. | | |
| Memo no 71 | iC solution for earthquake and stairs spreadsheet. | | |
| Memo no 72 | iC solution for earthquake and stairs additional reinforcement. | |
