Stairconnection Stair - wall
RVK 101, telescopic connection

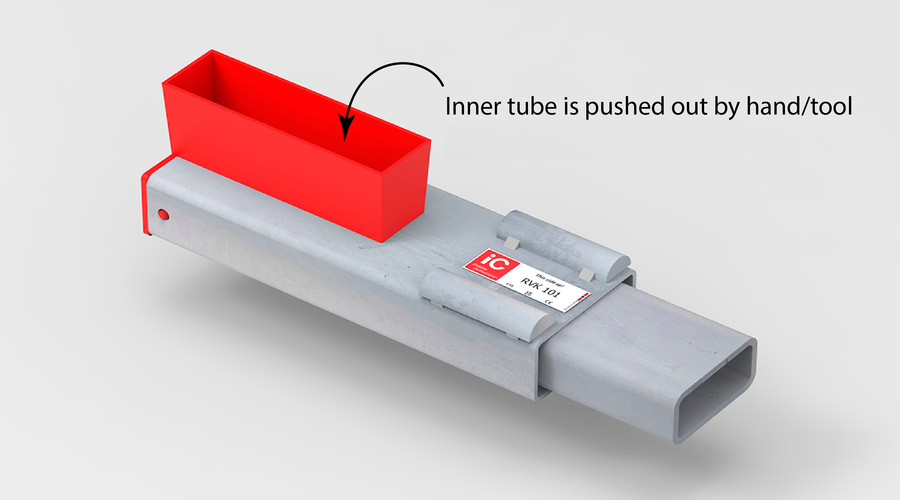

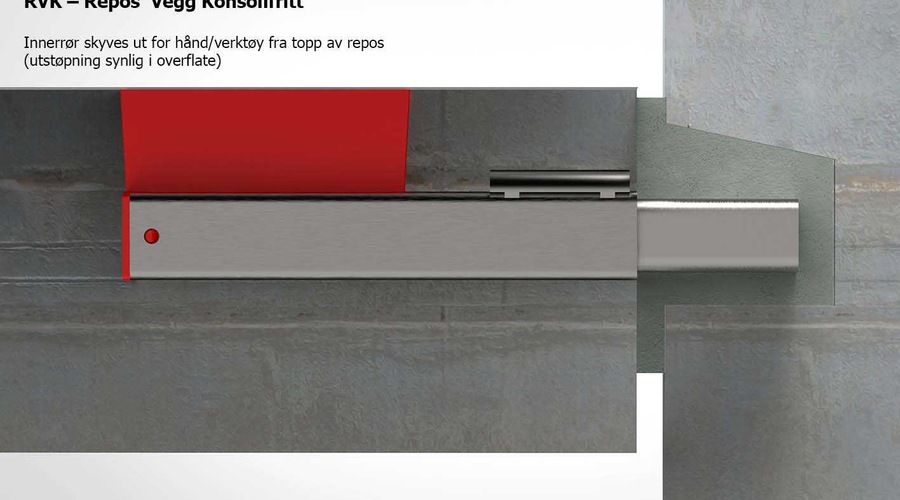

RVK101 stair connections consist of an outer tube and an inner tube. It contains of two hollow core sections, where the inner tube profile fits inside the outer tube. The inner tube will slide inside the outer tube and be pushed out and in to the recess in the wall. The inner tube is pushed out/in mechanically.
Invisible Connections TSS 101 is supplied in black steel or galvanized.
Capacity 100 kN, minimum landing thickness 200 mm at full capacity, 170 mm with reduced capacity.
For soundreduction combine with: IC Box 100 SRU
RVK101 stair connections consist of an outer tube and an inner tube. It contains of two hollow core sections, where the inner tube profile fits inside the outer tube. The inner tube will slide inside the outer tube and be pushed out and in to the recess in the wall. The inner tube is pushed out/in mechanically.
Invisible Connections TSS 101 is supplied in black steel or galvanized.
Capacity 100 kN, minimum landing thickness 200 mm at full capacity, 170 mm with reduced capacity.
For soundreduction combine with: IC Box 100 SRU
- Capacity
- 100 kN
- Minimum slab thickness
- 170 mm
- Weight, black steel
- 7.79 kg
- Weight, galvanised
- 7.98 kg
- Surface
- Black steel, Galvanised
RVK 101
- TSSRVK v1.6E — Calculationstool
- Memo nr 31 — Guidance, stair connections
- Memo nr 41 — Additional products, stair connections
- Memo nr 45 — Fire protection, stair connections
- Memo nr 47 — Impact sound transmission, stair connections
- Memo nr 54 — Technical specifications, stair connections
- Memo nr 55 — Anchoring reinforcement, stair connections
- Memo nr 64 — Anchoring reinforcement, units in pair, cc 250, stair connections
- Memo nr 65 — Anchoring reinforcement, stair connections - TSS 20 FA
- Memo nr 65 A — Anhoring reinforcement, stair connections - TSS 25 L
- Calcyl, Earthquake.
- Des Bull — Des Bull Report.
- Analyses of stairwells performace and damage during Wenchuan earthquake.
- Memo no 70 — iC solution for earthquake and stairs.
- Memo no 71 — iC solution for earthquake and stairs spreadsheet.
- Memo no 72 — iC solution for earthquake and stairs additional reinforcement.
